Our JVM series are pure pneumatic machines, and require no electricity. They are easy to operate and bottle changes are as easy as sliding new bottles under the fill heads or pushing the foot pedal. Fill levels are adjustable and achieve fill consistency regardless of the product. In addition to serving as a filler for your more delicate product lines, the JVM can also be an inexpensive backup unit, eliminating down time and costly set-ups for small runs. All the features above make them ideal machines for filling the water-like products, especially for perfume, toilet water, etc.

Vacuum filling systems draw product into the container by using constant vacuum suction. Once the fill level required reaches, the excess product will be drawn through the auto-drainage system and back into the product tank. The fill level of the container is determined by the depth of the vacuum heads within the neck of the container, so that the fill level will be the same regardless of bottle inconsistencies.

Our JVM machines can come equipped with a single or multiple heads for you to choose.

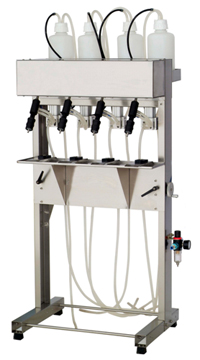

Jvm-4

Features Including:
1.Filling volume is determined by fill level.
2.Pure pneumatic machines meet the explosion-resistant requirements.
3.Auto-drainage system is equipped.
4.No strict requirement with the bottle shape and consistency.
5.Simple configuration and easy to operate and maintain.


Technical Specifications:
Air Supply: 5 ~ 8kg/cm2
Filling Volume: below 200ml
Filling Accuracy: Within ±1mm
Viscosity: Max. 20cps
