Semi-AutomaticTA　Capping Machine
Model：Capper

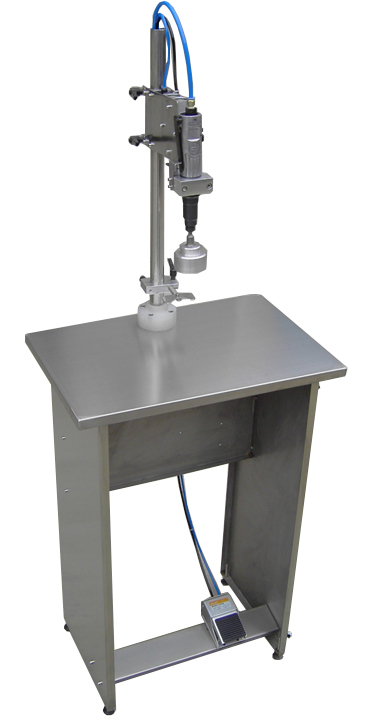

Our Semi-automatic Cappers are designed to handle most bottle types, because both the chuck height and the torque can be adjusted, a single machine can be used to tighten a variety of bottle caps of different sizes. The cappers have a simple and subtle design and can be installed on conveyors and working tables easily. It’s an ideal choice that be used on working line or Single production. Because both the chuck height and the torque can be adjusted, a single machine can be used to tighten a variety of bottle caps of different sizes. The cappers have a simple and subtle design and can be installed on conveyors and working tables easily.
　　　　　capper TA




An operator is required to place caps on the bottles, push the footpad, and then the capper can secure the caps onto the bottles automatically. The machine can effectively reduce operator fatigue and keep the tightening torque consistent.
Options include：

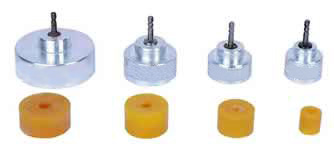

Include varying sizes of capping head, inner tuck and Stainless steel worktables. We can custom make them according to your requirement.




　　　　　　　The first special card


　　　　　Capper and cards within the first Cypriot
echnical Specifications

Cap Dia.

10～90mm

Speed

About 30 bottles/minute

Dimension

L650mm×W550mm×H1600mm

Main Body Weight

6.5 kg

Air Pressure

Between 4.5kg/cm2 and 6.2 kg/cm2

Air Consumption

0.09m3/min

Quick Connection Clip

1/4 inch

Clutch

12 grades of adjustable torque
